Fixed Anti-Drone Jamming system
Ref: Model#FDJ3 Marca: Necom
$ 200.00
Space for info
Lorem ipsum dolor sit amet, consectetur adipisicing elit. Ipsam, nisi.
Características

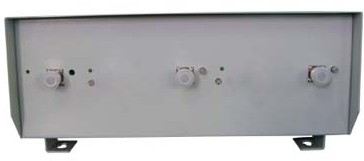

Fixed Anti-Drone Jamming system
1) Each unit can jam up to 3 frequency bands simultaneously, each frequency band is separate and with power switch to ON or Off, LED indicator lights display power supply;
2) 100% safe VSWR over protection for each modular;
3) Taking use of super-high frequency with high effective power;
4) Effective output power (channel power) and bigger interfere radius;
5)Imported elements: Slow start up design of circuit. These elements can maintain the stable operation condition with high integration;
Specification
Output Port | Frequencies | Average Output Power |
RC2.4 | 2400 - 2500MHz | 20watt |
RC5.8 | 5750 - 5850MHz | 10Watt |
GPS L1 /Galileo /Glonnas | 1560 -1620MHz | 10Watt |
Power Supply):AC110-220V/DC27V; Energy Consumption: 300W or so; Net Weight: 9.8kg; Dimension(L*W*H): 350*272*150mm; Total Power:30W; Shielding Radius: (400-1000) meters@-75dBm,depends on the strength signal in sourrounding. Time Operation: 24 hours, with Power Supply conditions. Operating Temperature: -18°C to 55°C | ||
System Accessories:

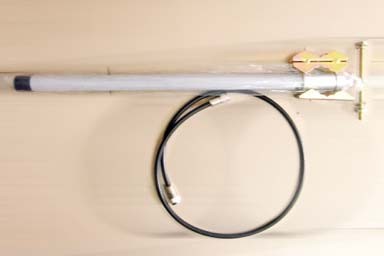

1)Antennas: Type A : Omni-directional antenna
Frequenncy Range 15600-1620(MHz) /2400-2500//5750-5850(MMHz)
Input Impedance 50(Ω)
VSWR
Gain
Maximum Power 100(W)
Polarization Vertical Polarization
Connector Type N-K
Lighting Protection Direct Ground
Wind Velocity 200(km/h)
Length
Weight 0.7(Kg)
Hold Pole Diameter φ33-φ36(mm)

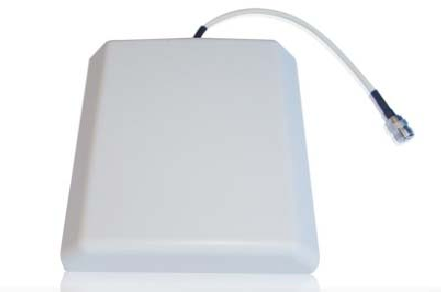

Type B:Directional panel antenna
Freq.Range-MHZ 1560-1620(MHz) /2400-2500/5750-5850(MHz)
Gain-dBi 7/10
Beam width-° E:70 H:72
VSWR
F/B Ratio-dB ≥18 50
Impedance-Ω 50
Polarization Vertical or Horizontal
Max Power-W 50
Connector Type N -Female
Antenna cover ABS
Mounting kit Stainless steel
Installation V/H
Antenna Size-mm 207x177x45
Weight-Kg 0.45
